T ABAP RESTful Application Programming Model (RAP) in SAP S/4HANA

D Learn how to develop a basic ABAP RESTful application in the SAP S/4HANA environment with this comprehensive step-by-step guide to execute your first "Hello World" program.
& Help A Step-by-Step Guide Getting Started with ABAP RESTful Application Programming Model (RAP) in SAP S/4HANA

RAP Restful Application Programming is a modern, simplified approach for developing applications in SAP, especially in SAP S/4HANA environments. It leverages the capabilities of SAP Fiori and ABAP programming to create and manage business applications efficiently. SAP Eclipse (or more accurately, ABAP Development Tools (ADT) for Eclipse) is a key tool for developing RAP applications.

Here’s a guide to getting started with RAP programming in the SAP Eclipse environment:

1. Prerequisites
SAP System Access: Ensure you have access to an SAP S/4HANA system or SAP Cloud Platform where you can develop and test your RAP applications.
Eclipse IDE with ABAP Development Tools (ADT): Install Eclipse IDE and add the ABAP Development Tools (ADT) plugin for SAP development.
2. Setting Up the Environment
Install Eclipse IDE:

Download and install Eclipse IDE from the Eclipse website.
Launch Eclipse and install the ABAP Development Tools plugin via the Eclipse Marketplace.
Configure SAP System Connection:

In Eclipse, go to Window > Preferences > ABAP Development > ABAP Connectivity.
Set up a new SAP system connection using your SAP system credentials.
3. Creating a RAP Application
Here’s a high-level overview of the process to create a RAP application in Eclipse:

Step 1: Create a New ABAP Project
Open Eclipse and select File > New > ABAP Project.
Enter your SAP system connection details and click Next.
Choose your SAP system and provide a project name. Click Finish.
Step 2: Define the Business Object
Create a New Package:

Right-click on your project and select New > Package.
Provide a name and description for the package.
Create a New Business Object:

Right-click on the package and select New > ABAP Class.
Name the class and use it to define your business object (BO).

CLASS z_my_bo DEFINITION FINAL.
PUBLIC SECTION.
METHODS:
get_data IMPORTING iv_id TYPE string
EXPORTING ev_data TYPE string.
ENDCLASS.

CLASS z_my_bo IMPLEMENTATION.
METHOD get_data.
" Your implementation here
ENDMETHOD.
ENDCLASS.
Define the Data Model:

Use the Core Data Services (CDS) to define your data model. Right-click on the package and select New > Other ABAP Repository Object > Core Data Services.
Define the data structure using CDS views.
abap
Copy code
@AbapCatalog.sqlViewName: 'ZMY_VIEW'
@AccessControl.authorizationCheck: #CHECK
@EndUserText.label: 'My Business Object View'
define view Z_My_Business_Object
as select from my_table
{
key field1,
field2,
field3
}
Step 3: Create the Business Logic
Implement the Business Logic:

Use ABAP classes and methods to define the business logic of your RAP application.
Define the RAP Application Layer:

Create a new RAP Layer by right-clicking on the package and selecting New > ABAP Dictionary Object > Business Object.
Define your RAP service and its components, including the handler classes and the behavior implementation.
Step 4: Define and Activate the Service
Create and Define the RAP Service:

Define the RAP service in your development environment using the Service Definition and Behavior Definition.

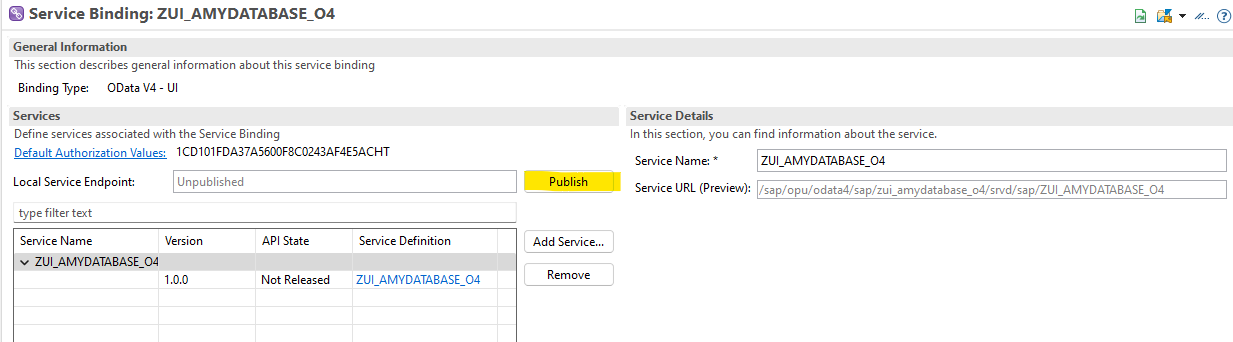

Register and Activate the Service:

Register your RAP service using transaction /IWFND/MAINT_SERVICE and activate it.
Test the Service:

Use the SAP Gateway Client or other tools to test your RAP service and ensure it behaves as expected.
4. Deploy and Test
Deploy the RAP Application: Once developed and tested, deploy your RAP application to the SAP environment.
Test the Application: Ensure your application meets the requirements and functions correctly in the SAP Fiori environment.
5. Additional Resources
SAP Help Portal: Access official documentation and tutorials for RAP and Eclipse integration.
SAP Community: Engage with other developers and experts in the SAP Community forums for support and best practices.
SAP Learning Hub: Explore SAP’s training materials and courses for a more in-depth understanding of RAP and SAP Fiori.
This should give you a good starting point for RAP programming in SAP using Eclipse. If you have specific questions or need more detailed guidance on any part of the process, feel free to ask!

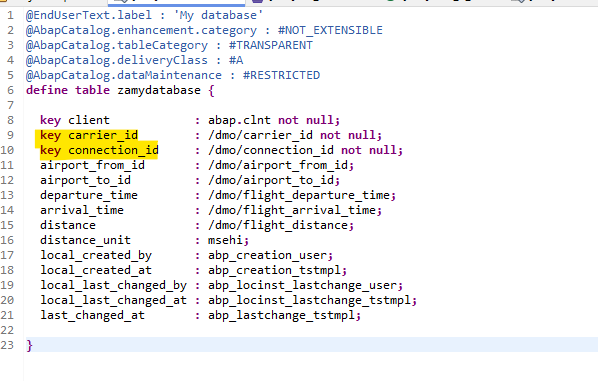

Example coding
@EndUserText.label : 'My database'
@AbapCatalog.enhancement.category : #NOT_EXTENSIBLE
@AbapCatalog.tableCategory : #TRANSPARENT
@AbapCatalog.deliveryClass : #A
@AbapCatalog.dataMaintenance : #RESTRICTED

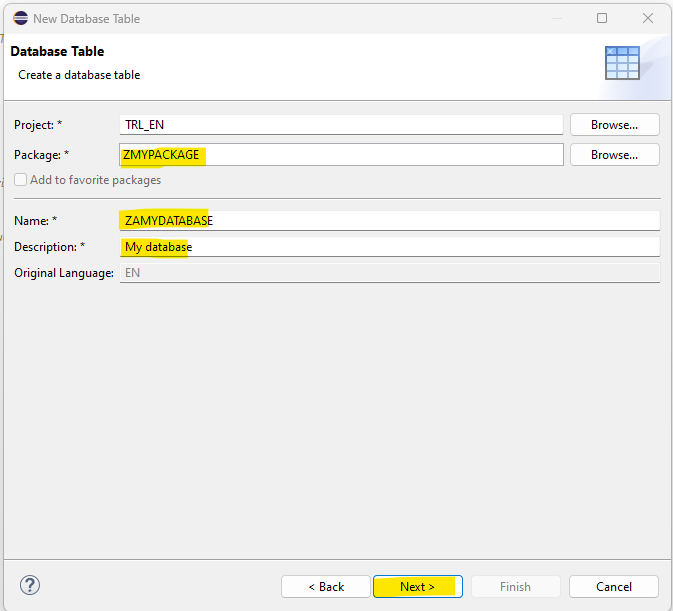

define table zamydatabase {

key client : abap.clnt not null;
key carrier_id : /dmo/carrier_id not null;
key connection_id : /dmo/connection_id not null;
airport_from_id : /dmo/airport_from_id;
airport_to_id : /dmo/airport_to_id;
departure_time : /dmo/flight_departure_time;
arrival_time : /dmo/flight_arrival_time;
distance : /dmo/flight_distance;
distance_unit : msehi;
local_created_by : abp_creation_user;
local_created_at : abp_creation_tstmpl;
local_last_changed_by : abp_locinst_lastchange_user;
local_last_changed_at : abp_locinst_lastchange_tstmpl;
last_changed_at : abp_lastchange_tstmpl;

}

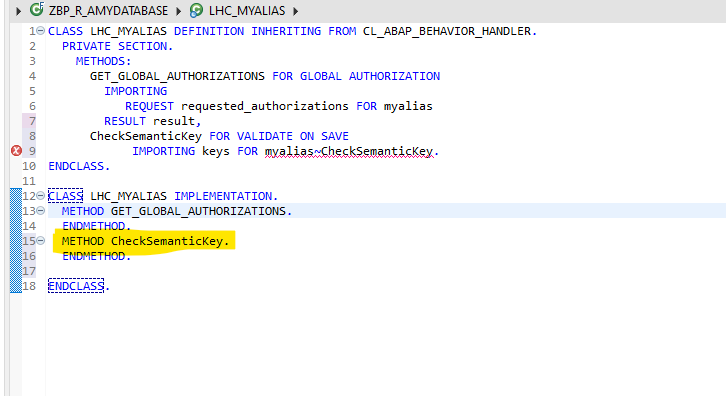

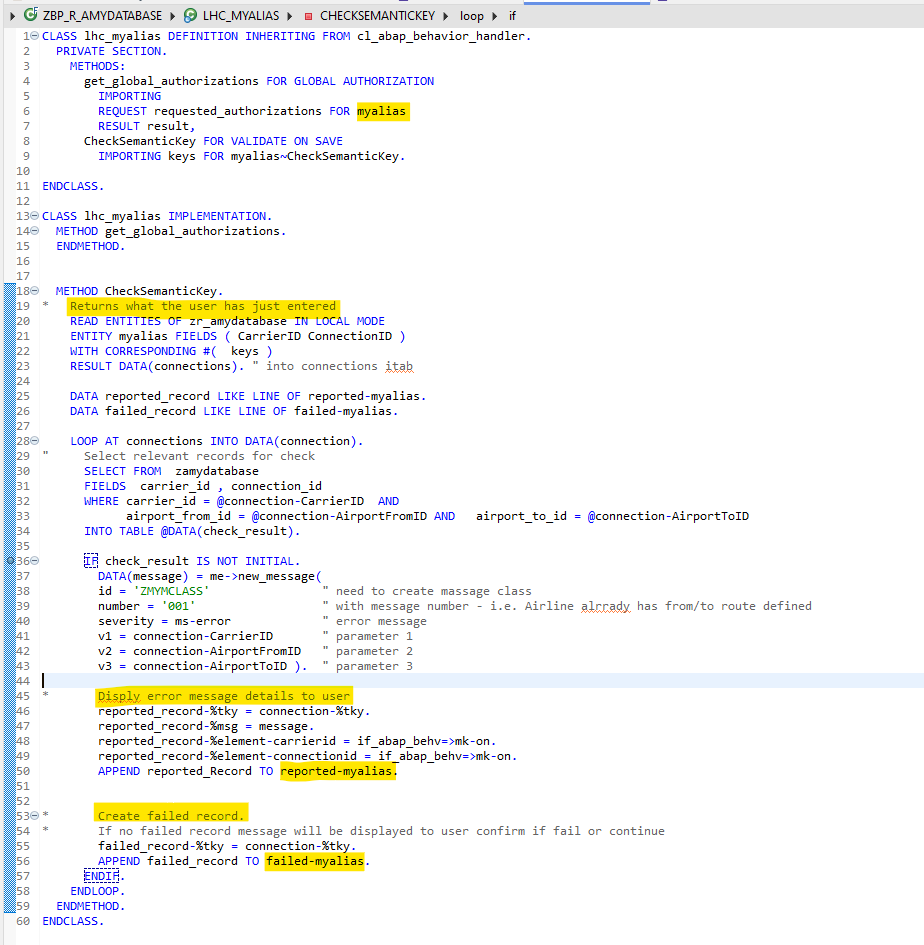

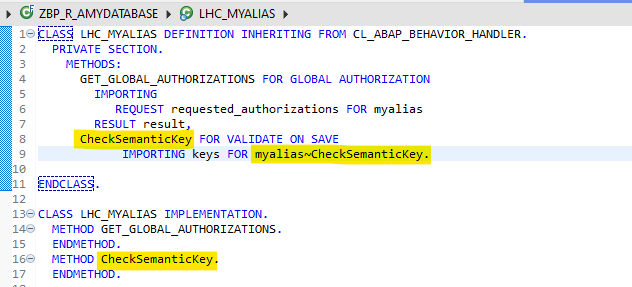

METHOD CheckSemanticKey.
* returns what has just been entered
READ ENTITIES OF zr_amydatabase IN LOCAL MODE
ENTITY myalias FIELDS ( CarrierID ConnectionID )
WITH CORRESPONDING #( keys )
RESULT DATA(connections). " into connections itab

DATA reported_record LIKE LINE OF reported-myalias.
DATA failed_record LIKE LINE OF failed-myalias.

LOOP AT connections INTO DATA(connection).
SELECT FROM zamydatabase
FIELDS carrier_id , connection_id
WHERE carrier_id = @connection-CarrierID and
airport_from_id = @connection-AirportFromID and airport_to_id = @connection-AirportToID
INTO TABLE @DATA(check_result).

IF check_result IS NOT INITIAL.
DATA(message) = me->new_message(
id = 'ZMYMCLASS' " need to create massage class
number = '001' " with message number - i.e. Airline alrrady has from/to route defined
severity = ms-error " error message
v1 = connection-CarrierID " parameter 1
v2 = connection-AirportFromID " parameter 2
v3 = connection-AirportToID ). " parameter 3

" Disply error message details to user
reported_record-%tky = connection-%tky.
reported_record-%msg = message.
reported_record-%element-carrierid = if_abap_behv=>mk-on.
reported_record-%element-connectionid = if_abap_behv=>mk-on.
APPEND reported_Record TO reported-myalias.


" Create failed record.
" if no failed record message will be displayed to user confirm if fail or continue
failed_record-%tky = connection-%tky.
APPEND failed_record TO failed-myalias.

ENDIF.

ENDLOOP.
ENDMETHOD.
